Sunsonics

Sunsonics Technical Specifications

Solar Generator PA System Lighting

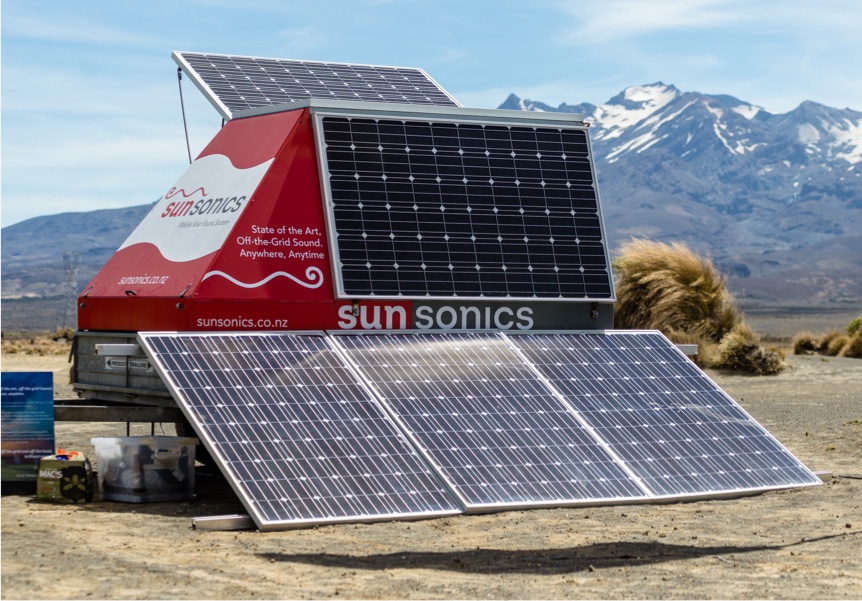

Solar Generator

Continuous Output at 25⁰C 2.0kVA
Continuous Output at 25⁰C (30 mins) 2.5 kVA
Peak Power Output at 25⁰C (5 second spikes) 7.0 kVA
Output Voltage (Pure sine wave, Adjustable) 190 – 245V (240V standard)
Output Frequency (Adjustable) 45 – 65 Hz
Power Output Connections 6 x 15A 240V
Solar Power Input – Trailer only 825W
Solar Power Input – Trailer & Freestanding array 1.65 kW (max of 2.5 kW)
Wind/water power input 2.0 kW max
Continuous Run Time (no solar charge) @ 1.0 kVA (typical band, PA and stage and lighting set up) 11 Hours
Trailer loading (weight) 800 kg’s
Solar generator set up time (Trailer) 10 mins

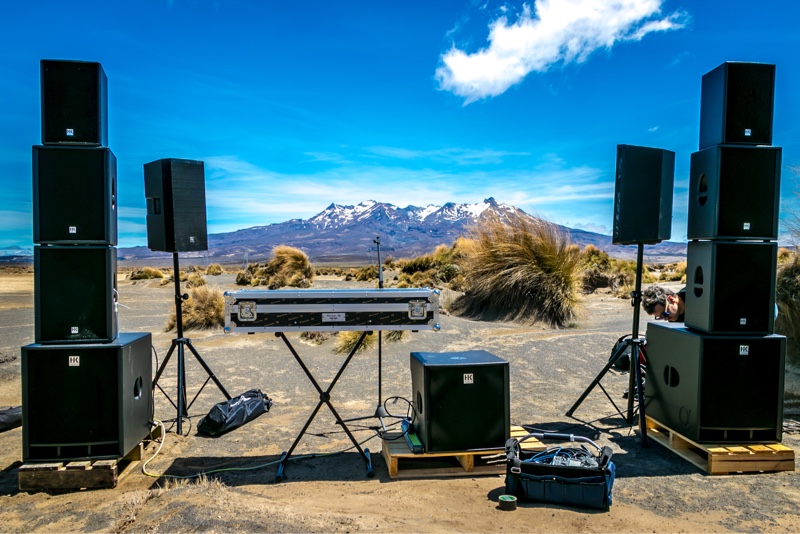

PA System

HK Audio LUCAS MAX Compact, Hi power, Hi Fidelity Accoustics
Power Rating 2000 W
Audience 400
LF Speaker 1 x 15”
Low/Mid Speakers 2 x 10”
HF Driver 2 x 1”

Max sound and max headroom in a package that can be toted by one person. Enhanced performance is delivered by cutting-edge components such as digital signal processors and digital amplifiers. LUCAS Max provides consistently transparent and warm sound at all volume levels, from subdued dinner accompaniment to full-blown concert sound throughout the hall.

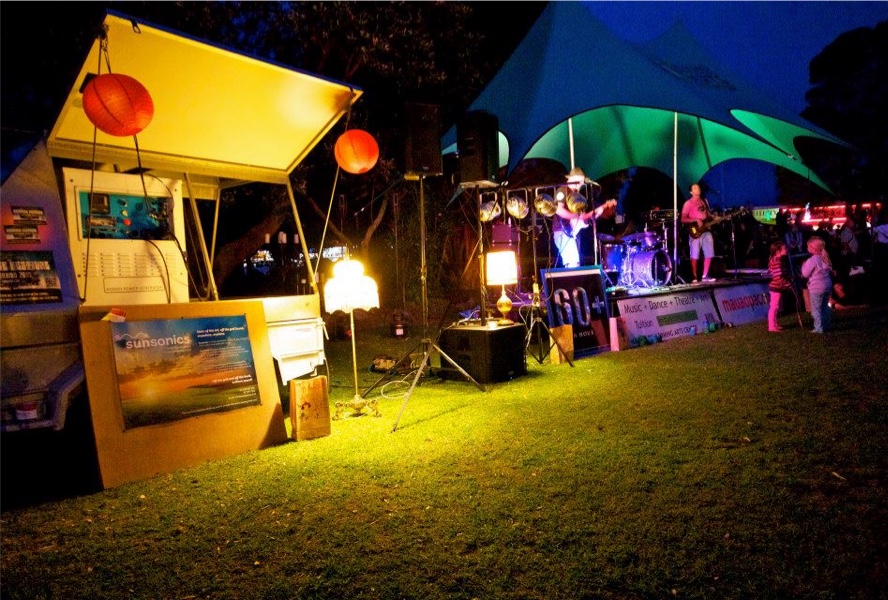

Lighting

4 x PAR 56 LED Cans on bar and stand 120 W
DMX lighting controller
Custom lighting as required

Technical Sound Superiority

Generally power from the Mains Grid is "dirty power". Regular "clean" power enters homes, buildings, and offices at 60 Hz. The increased use of electrical power overloads electrical grid base, which distributes the power. Power is "dirty" or polluted when it contains the high frequency signals flowing through overloaded wires, and not just clean 60 Hz power.

The use of stored energy in sealed-lead acid or lithium batteries and pure sinewave inverters provides a very clean source of power. When used for powering a PA system and musical equipment the improvement in sound quality is staggering. The sound is superb when using power from stored energy such as a solar/battery power source and pure sine wave inverter due to the constant voltage power supply and no power supply harmonic interference.
